Taxiway (Taxi), Wing Span & Outer Engine Clearance and Width Guide
Hello all, now that most of all the aircraft are out, I made a little guide (visual) for those of you who want to have wing or engine clearance for your airport designs!



KEY & Images

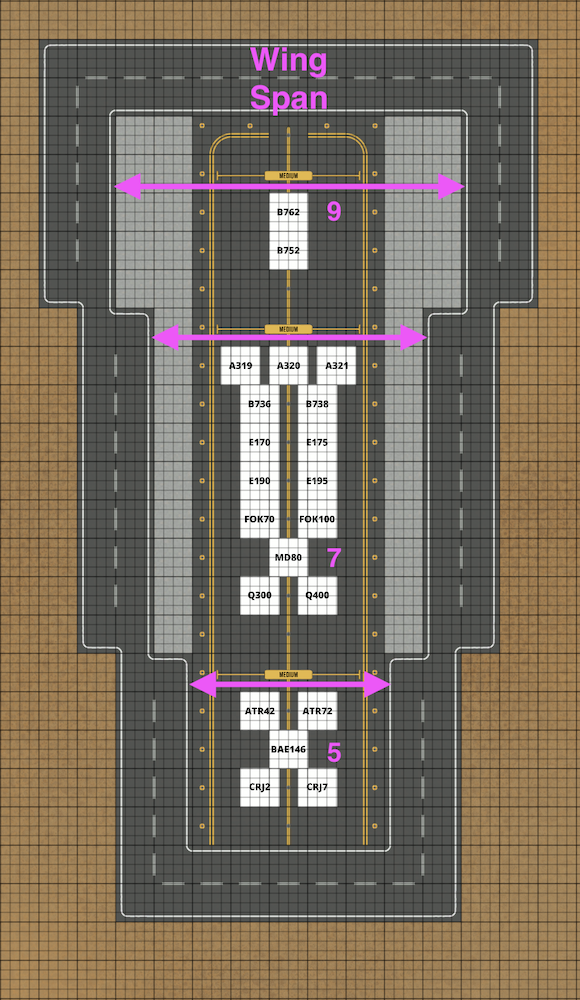

Magenta = will have wingspan clearance

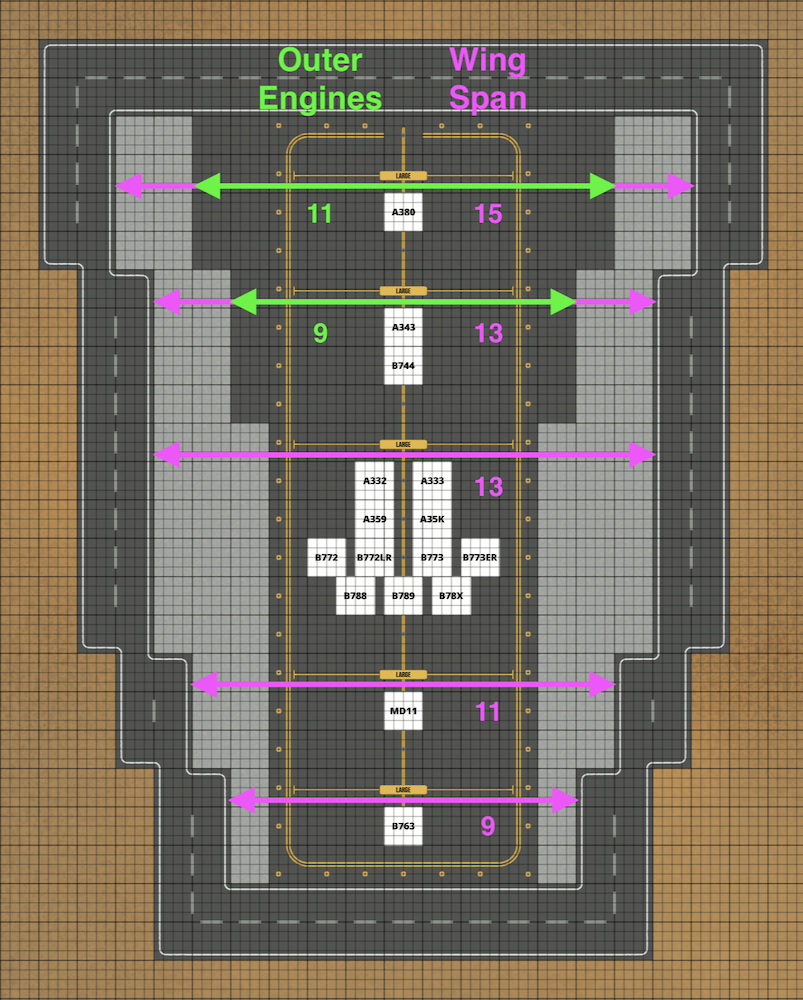

Green = will have outer engine clearance (A340-300, A380, & B747 only)

I have uploaded images both showing with and without tile guidelines

Feel free to save these images to your computer or bookmark this page for quick reference!

Happy Building! :airplane:
